The Automobile Automotive Measurement Tools and Fasteners Service Information Vehicle Maintenance
$10
ASSEMBLY
A ________ is a set of fitted parts designed to perform a specific function.
$10
FEELER GAUGE
The tool used to measure small clearances or gaps between parts is called a(n) ________ ________.
$10

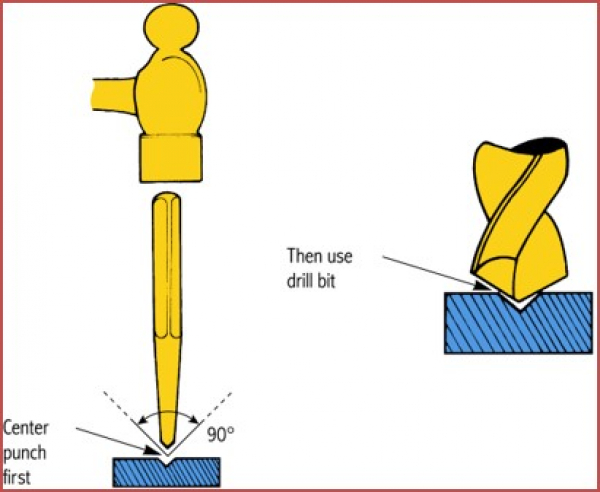

CENTER
View Image
A ________ punch is used to make a small indentation in metal before drilling a hole.
$10
REPAIR ORDER (WORK ORDER)
A ________ ________ is a form used by technicians to record information about a vehicle that is being serviced.
$10
WARM
When changing engine oil, the oil should be ________. (cold/warm)
$20

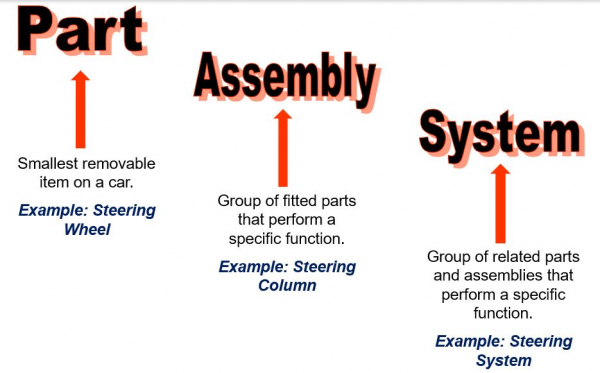

SYSTEM
View Image
An automotive ________ is a group of related parts and assemblies that perform a specific job.
$20
PSI (POUND PER SQUARE INCH)
A pressure gauge is read what units?
$20
FORWARD
When using a hacksaw (or a file), you should only apply pressure on the ________ stroke.
$20
FLAT RATE
A ________ ________ manual should be used to calculate the cost of a repair.
$20
ANTIFREEZE
Engine coolant is a mixture of water and ________.
$30

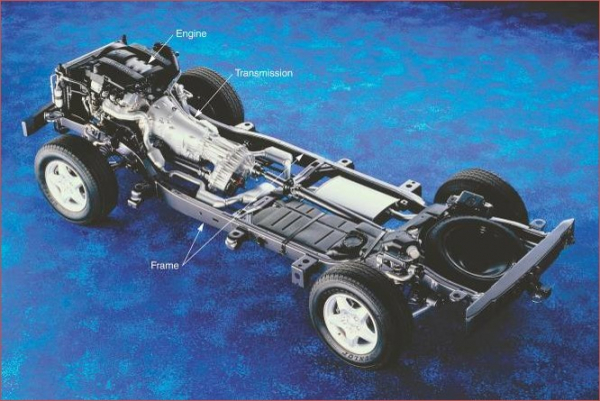

CHASSIS
View Image
The ________ refers to the vehicle's frame and everything mounted to it except the body.
$30

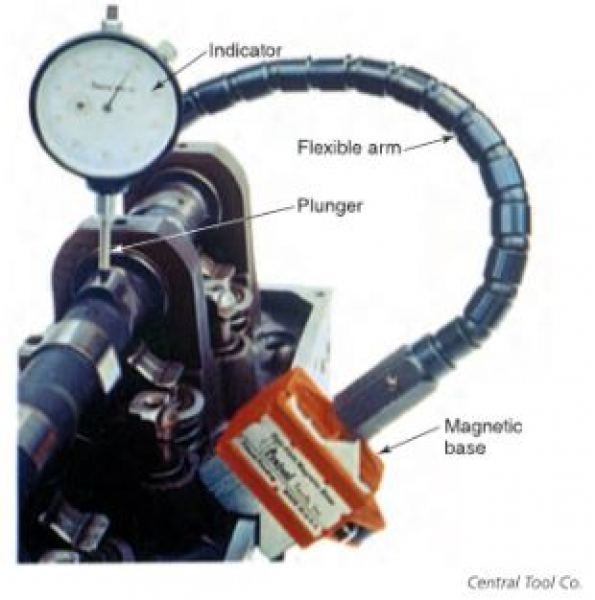

DIAL INDICATOR
View Image
The tool that measures part movement in thousandths of an inch is called a ________ ________.
$30

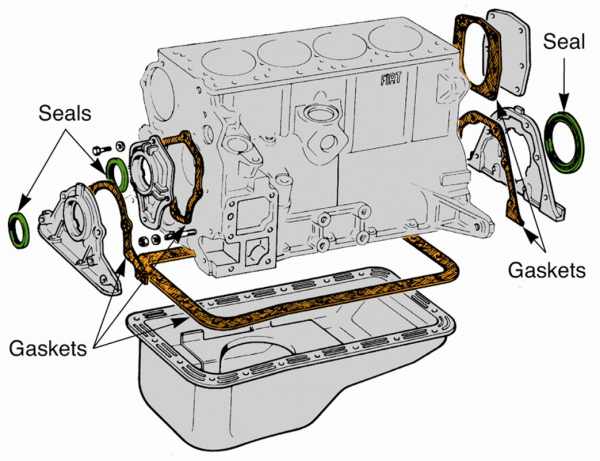

GASKET
View Image
A soft, flexible material that is placed between stationary parts to prevent leakage is called a ________.
$30
OWNER'S MANUAL
A ________ ________ is a small booklet given to the purchaser of a new vehicle that contains basic information on starting the engine, maintaining the car, fluid types, and fluid capacities.
$30
1" (ONE INCH)
When checking radiator coolant levels by removing the radiator cap, the coolant level should be how far below the top of the filler neck?
$40
WHEELBASE
Vehicle ________ is the distance from the centerline of the front wheels to the centerline of the rear wheels.
$40
0.35
The decimal equivalent of 35% is ________.
$40

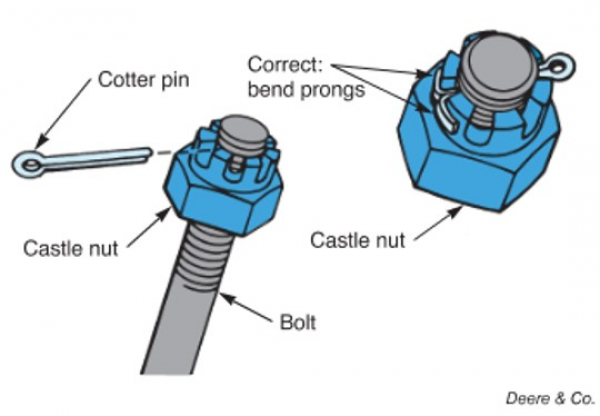

COTTER PIN
View Image
A ________ ________ is used with a castle nut to prevent it from turning.
$40

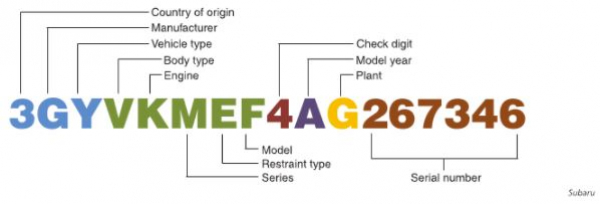

Vehicle engine type, model year, transmission type, and other information can be determined from the ________, which can be found on a plate located on the vehicle's dashboard.
$40
RUNNING
Automatic transmission fluid should be checked with the engine ________ and the transmission in "Park".
$50
WHEELS
Force is transmitted from the engine to the vehicle's ________ by the Drive Train.
$50

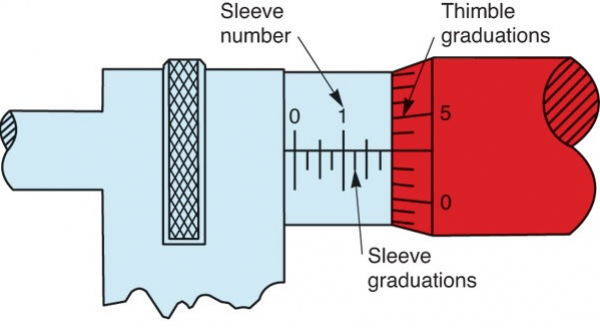

.100
View Image
Each number on the sleeve of a customary micrometer equals _________ inch.
View Image
$50

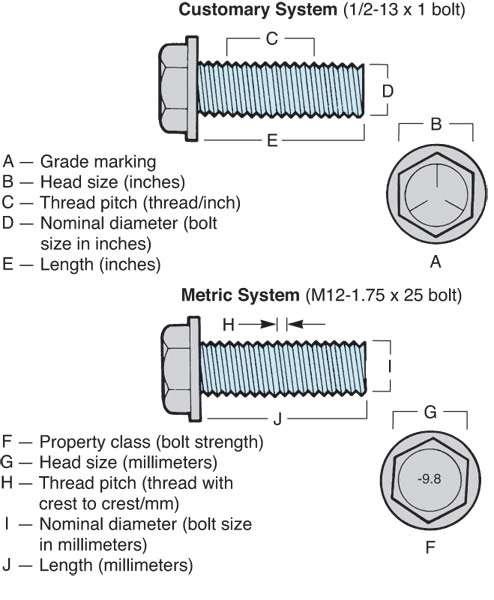

PITCH
View Image
Fastener thread coarseness is also known as thread ________.
$50
TECHNICAL SERVICE BULLETINS (TSBs)
________ ________ ________s are issued by vehicle manufacturers when multiple occurrences of a problem are experienced by a specific vehicle, and help the technician stay up-to-date with current technical changes, common repair problems, and other service-related information.
$50
ABOVE
If you find fluid dripping from a vehicle, the likeliest direction to look for the actual leak is ________ and in front of the drip point.

Auto 103 - Review for Final Exam - Fall 2021
